OmniCubed Miter-It™

Miter-It-Original-Corner

MITERS MADE EASY

PRODUCT HIGHLIGHTS

• Miter finished side up; keep the seam in view
• No flipping for gluing; protect your back and the material
• Squares the miter with fast, easy adjustments, eliminating the need for a helper

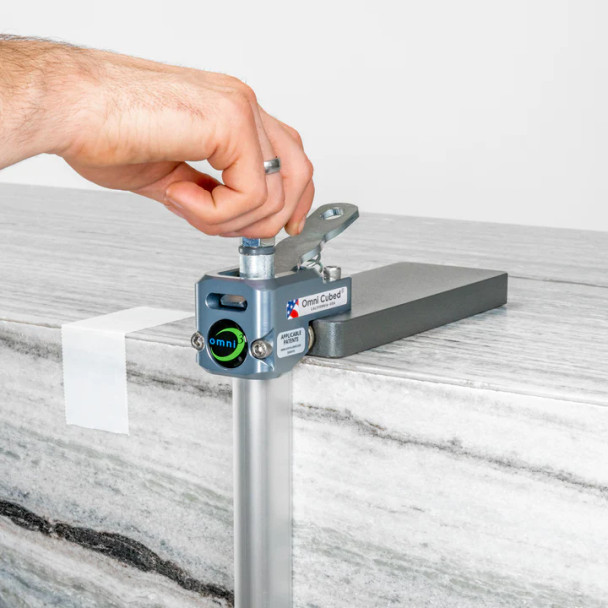

• Coarse and fine adjustments for exact seams
• More efficient than taping methods alone
• Jig's weight and non-skid contact points hold it in place
• Highly durable steel construction with powder-coat finish
• Accommodates mitered edges from 1.5" - 6" tall

PRODUCT DESCRIPTION

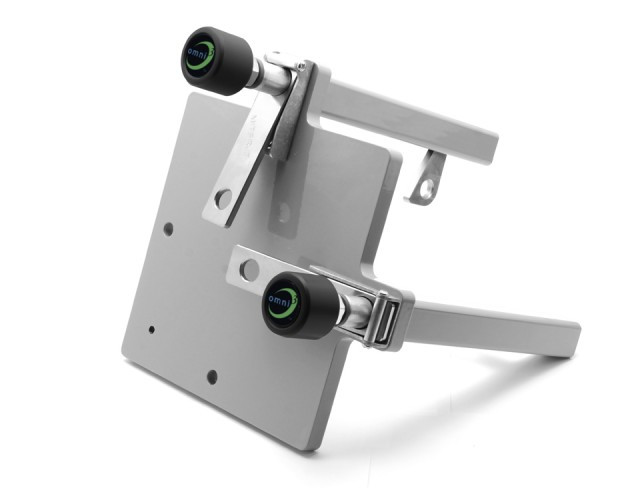

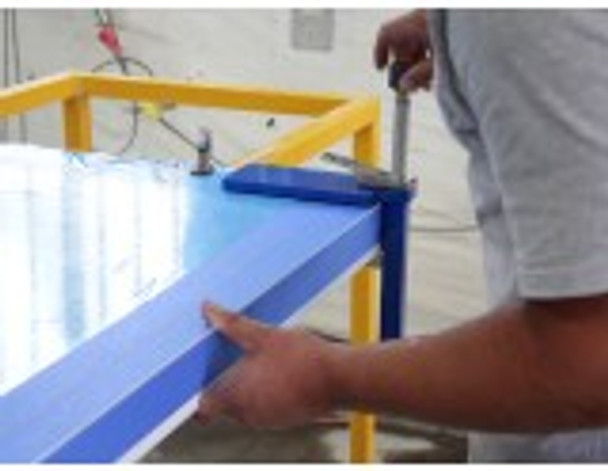

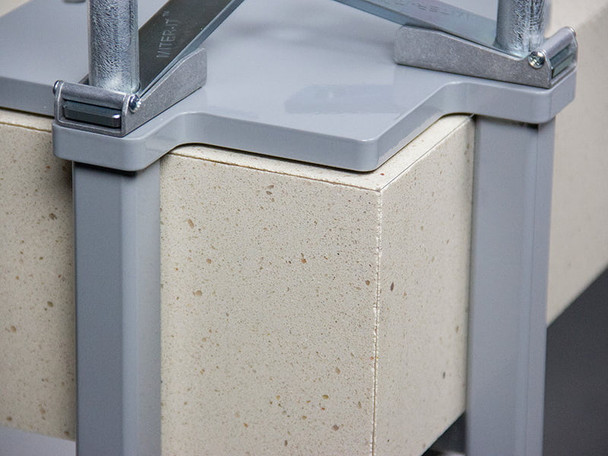

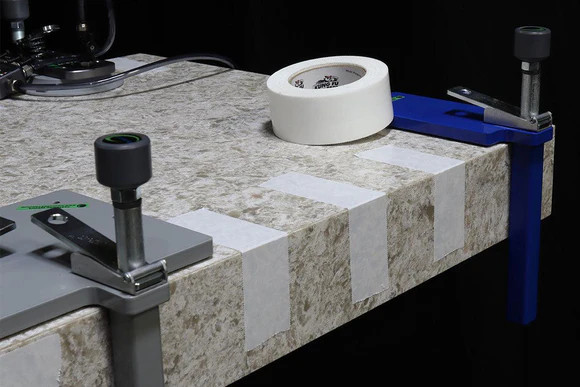

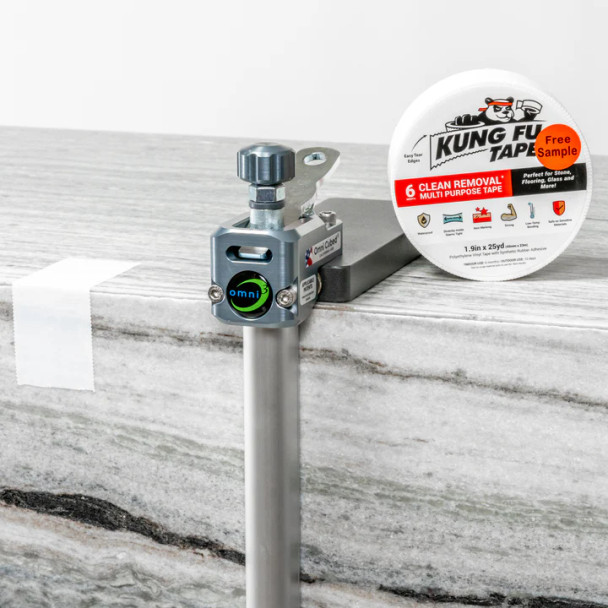

The Miter-It™ is an easy-to-use jig that allows finished-side-up miter laminations. Not flipping the material offers numerous benefits including increased safety for workers, reduced risk of damage to the material, and keeping the seam in view during lamination. The clamp offers coarse and fine adjustment settings for achieving exact seams. The Miter-It securely holds drop-down edges at 90°, eliminating the need for a helper to position the material. The jig's weight and non-marking, non-skid contact surface hold the product and miter piece in place—no suction cups needed. This simple, yet innovative tool greatly reduces the numerous awkward adjustments required with other miter clamps, and offers better results than taping methods alone. The heavy-duty steel design features a powder-coat finish and accommodates edges from 1.5" - 6". Sold individually.

Typically, one jig every 2 to 4 feet is sufficient, but more may be used for extra long or heavy aprons. Wherever you would need a hand to hold the material, put a Miter-It™ there instead!

PATENT US9393765

Miter-It-Auto-Pneumatic-Electric-Auto Clamp(single)

IN-SHOP MITERS MADE EASY

PRODUCT HIGHLIGHTS

• Easy, fast, and efficient mitered laminations in the fabrication shop
• Saves labor by eliminating the need for a helper
• Miter finished side up—safer for workers and material; keep the seam in view
• Highly efficient vacuum source requires only ½ CFM of compressed (shop) air
• Reliably holds heavy drop-down edges at 90°
• Coarse adjustment lever for quick apron placement
• Horizontal and vertical fine-tuning knobs for ultimate seam control
• Non-marking, proprietary synthetic* rubber cups are highly-durable and feature FTS™ technology for optimum hold, even on textured materials
• Accommodates edges up to 12” tall, 3 cm thick

PRODUCT DESCRIPTION

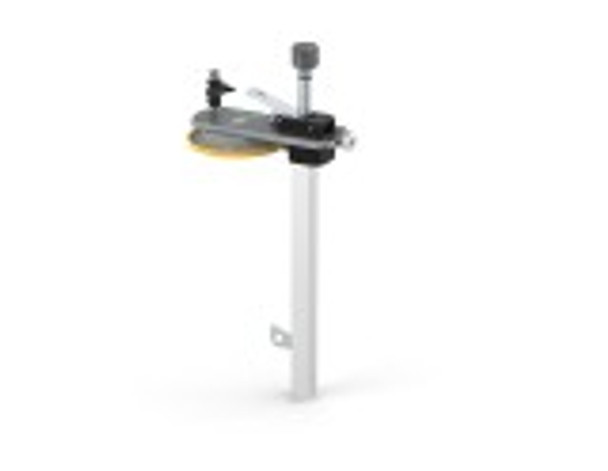

The Miter-It™ Auto, Pneumatic system saves time and money on performing miter laminations in the shop by eliminating the need for a helper—wherever you would need a hand to hold the material, put a Miter-It™ Auto clamp there instead! This system uses a highly efficient Venturi Vacuum Generator that requires only ½ CFM of compressed (shop) air to provide a continuously strong and reliable hold for up to 10 vacuum cups simultaneously. The user-friendly clamps securely and reliably hold heavy, drop-down edges at 90°, enabling finished-side-up laminations and providing better results than taping methods alone. Seaming the joint finished-side-up offers increased safety for workers and reduced risk of damage to the piece by not having to flip the material for gluing. This also keeps the seam in view for dialing-in perfect joints, and makes clean-up fast and easy. The coarse adjustment lever quickly raises apron into place, while the horizontal and vertical fine-tuning knobs provide ultimate control over the seam. Miter-It Auto™ clamps accommodate edges up to 12" tall and 3 cm thick. The proprietary, non-marking vacuum cups provide an exceptional hold on textured and porous surfaces. The 10-port Venturi Vacuum Generator allows adding eight additional clamps to cover more surface area. Typically, one Miter-It™ Auto clamp every 3 to 4 feet is sufficient, but more may be used for extra-long or heavy aprons.

PATENT US9393765

PATENT US9651084

Miter-It-Auto-Pneumatic-Electric-Auto Clamp(single)

JOBSITE MITERS MADE EASY

PRODUCT HIGHLIGHTS

• Mitered laminations “on the go”
• Saves labor by eliminating the need for a helper
• Miter finished side up—safer for workers and material; keep the seam in view
• Compact vacuum pump runs on AC or battery power for use at jobsite
• Reliably holds heavy drop-down edges at 90°
• Coarse adjustment lever for quick apron placement
• Horizontal and vertical fine-tuning knobs for ultimate seam control
• Non-marking, proprietary synthetic* rubber cups are highly-durable and feature FTS™ technology for optimum hold, even on textured materials
• Accommodates edges up to 12” tall, 3 cm thick

PRODUCT DESCRIPTION

The Miter-It™ Auto, Electric system enables vacuum-powered mitered laminations “on the go”. Save time and money by eliminating the need for a helper—wherever you would need a hand to hold the material, put a Miter-It™ Auto clamp there instead! The Electric model uses a powerful, compact vacuum pump that runs on AC or battery power, so you can use this system at any jobsite. The user-friendly clamps securely and reliably hold heavy, drop-down edges at 90°, enabling finished-side-up laminations and providing better results than taping methods alone. Seaming the joint finished-side-up offers increased safety for workers and reduced risk of damage to the piece by not having to flip the material for gluing. This also keeps the seam in view for dialing-in perfect joints, and makes clean-up fast and easy. The coarse adjustment lever quickly raises apron into place, while the horizontal and vertical fine-tuning knobs provide ultimate control over the seam. Miter-It™ Auto clamps accommodate edges up to 12" tall and 3 cm thick. The proprietary, non-marking vacuum cups provide an exceptional hold on textured and porous surfaces. The 10-port Electric Vacuum Manifold allows adding eight additional clamps to cover more surface area. Typically, one Miter-It™ Auto clamp every 3 to 4 feet is sufficient, but more may be used for extra-long or heavy aprons.

PATENT US9393765

PATENT US9651084

ACCESSORIES

• The Miter-It™ Auto clamp allows expansion of your Miter-It™ Auto system.
• The Venturi Vacuum Generator highly efficient (½ CFM) vacuum source to run Miter-It™ Auto system or other Omni Cubed products on compressed (shop) air.

Miter-It-Auto-Pneumatic-Electric-Auto Clamp(single)

PRODUCT DESCRIPTION

The single Miter-It™ Auto clamp allows the expansion of any Miter-It™ Auto system (Electric, Pneumatic, or Starter Kit). If purchasing alone (not as an expansion for the Pneumatic or Electric set), this item requires the use of an Omni Cubed vacuum manifold system (sold separately). See the Accessories list below to determine which vacuum system is right for you.

The Miter-It™ Auto saves time and money by eliminating the need for a helper—wherever you would need a hand to hold the material, put a Miter-It™ Auto clamp there instead! The user-friendly clamps securely and reliably hold heavy, drop-down edges at 90°, enabling finished-side-up laminations and providing better results than taping methods alone. Seaming the joint finished-side-up offers increased safety for workers and reduced risk of damage to the piece by not having to flip the material for gluing. This also keeps the seam in view for dialing-in perfect joints, and makes clean-up fast and easy. The coarse adjustment lever quickly raises apron into place, while the horizontal and vertical fine-tuning knobs provide ultimate control over the seam. Miter-It Auto™ clamps accommodate edges up to 12" tall and 3 cm thick. The proprietary, non-marking vacuum cups provide an exceptional hold on textured and porous surfaces. Typically, one Miter-It™ Auto clamp every 3 to 4 feet is sufficient, but more may be used for extra-long or heavy aprons.

PATENT US9393765

PATENT US9651084

ACCESSORIES for use with Electric system "on the go"

• The Vacuum Manifold Kit highly efficient (½ CFM) electric system that can be used “on the go” at any jobsite when connected to Omni Cubed’s electric vacuum pump
• The Vacuum Pump Kit is a powerful, yet compact, automatic vacuum pump that operates on AC power or eight AA batteries (for installations where electricity is not available)

ACCESSORIES for use with Shop Air

• The Venturi Vacuum Generator highly efficient (½ CFM) vacuum source to run Miter-It™ Auto system or other Omni Cubed products on compressed (shop) air.
